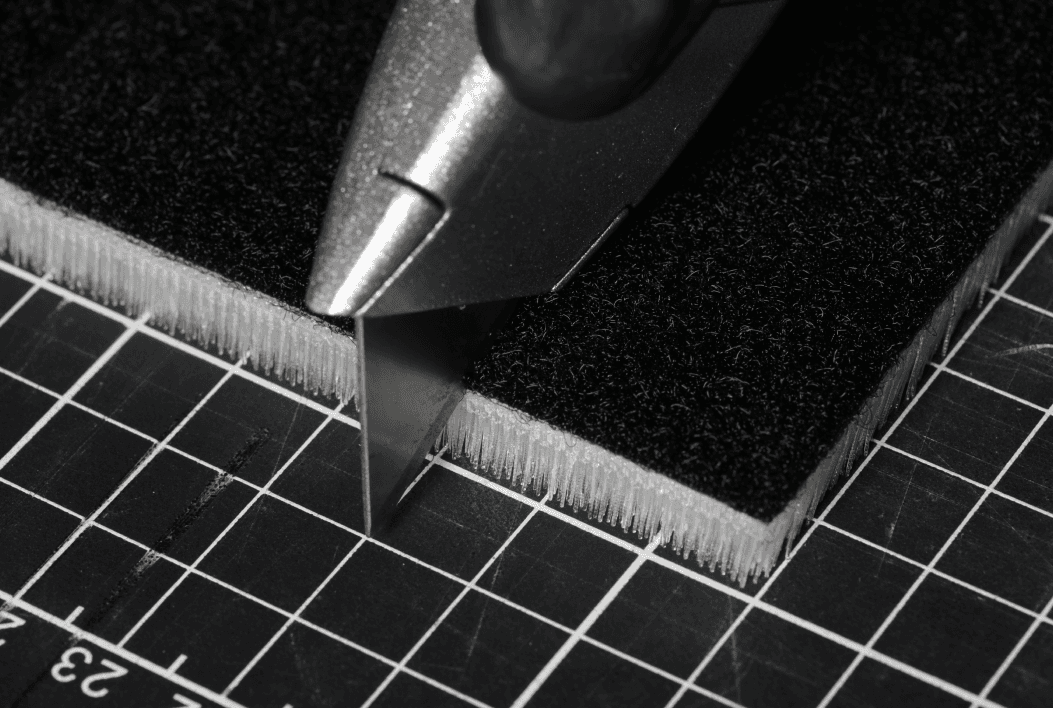

Cut
Easily cut panels to size with a band saw, box cutter or razor. Make sure the bristles are facing down.
PolyBrush™
Developed in partnership with the Industrial Brush Company.
Developed in partnership with the Industrial Brush Company.
Developed in partnership with the Industrial Brush Company.
Gentle, non-marking vibratory conveying brush surface

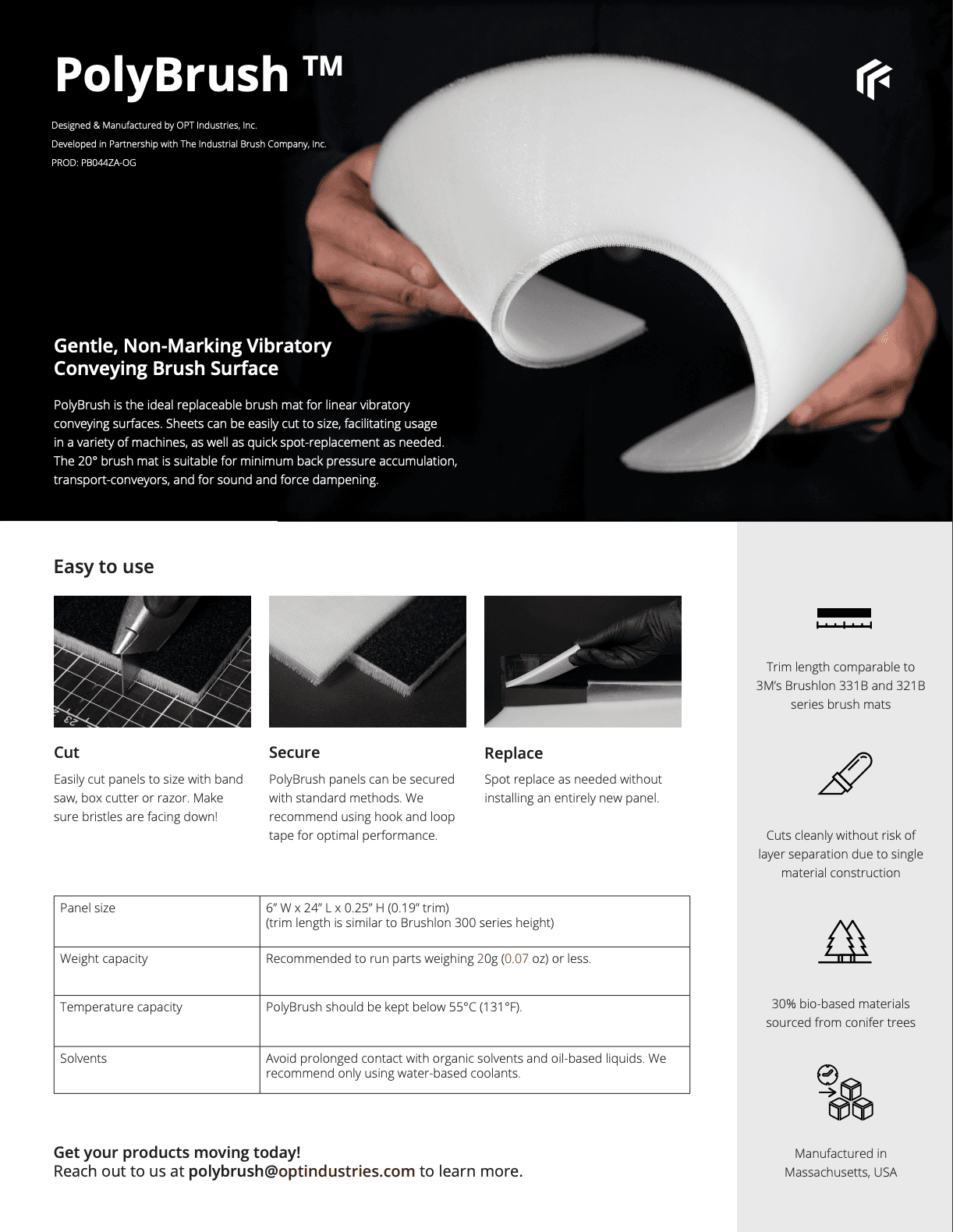

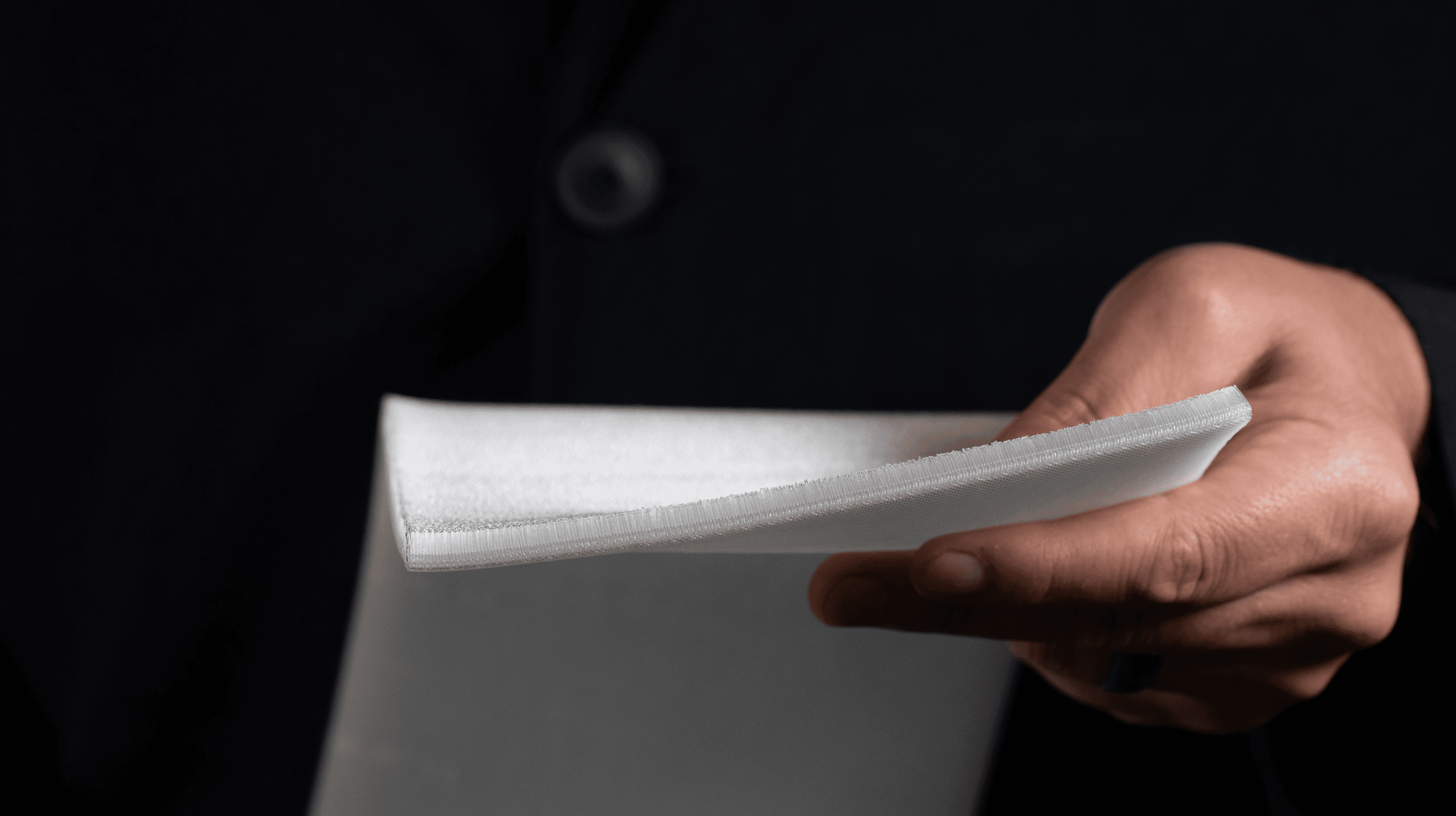

PolyBrush is the new 3/16” trim replaceable brush mat to line vibratory conveying surfaces. Sheets can be easily cut to size, facilitating usage in a variety of machines, as well as easy spot-replacement as needed. The 20° brush mat is suitable for minimum back pressure accumulation and transport conveyors.

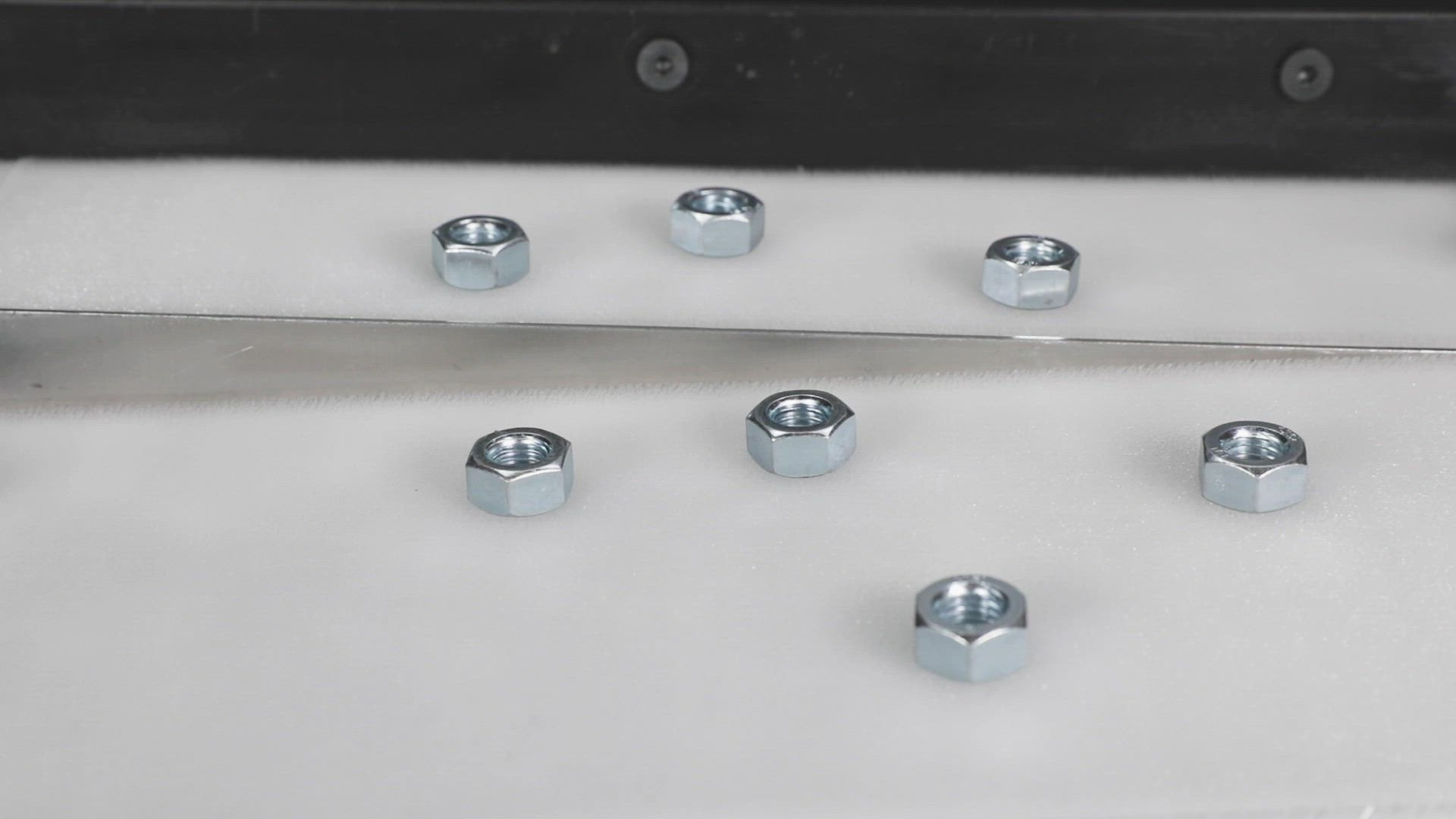

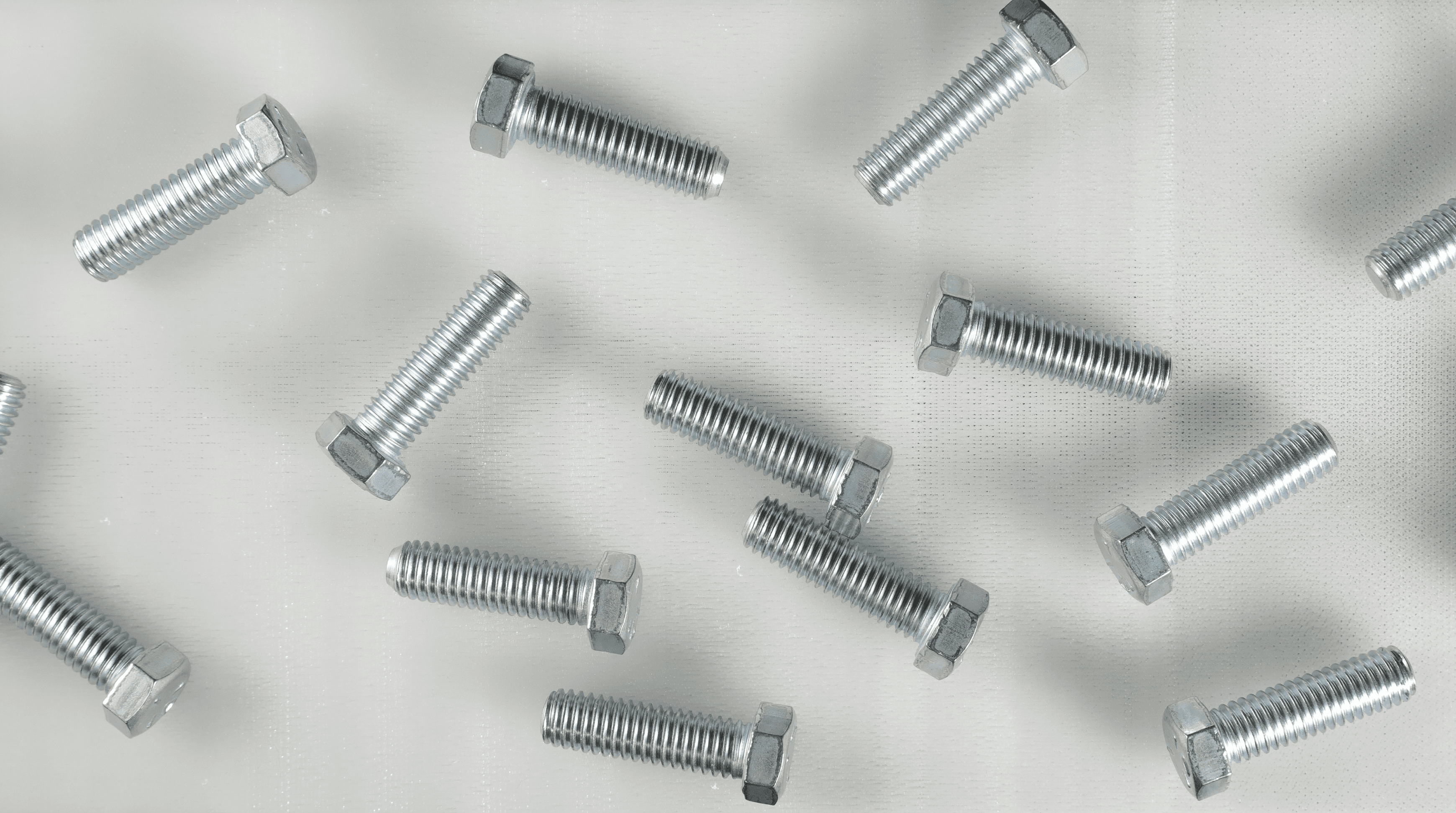

Transport parts without damage

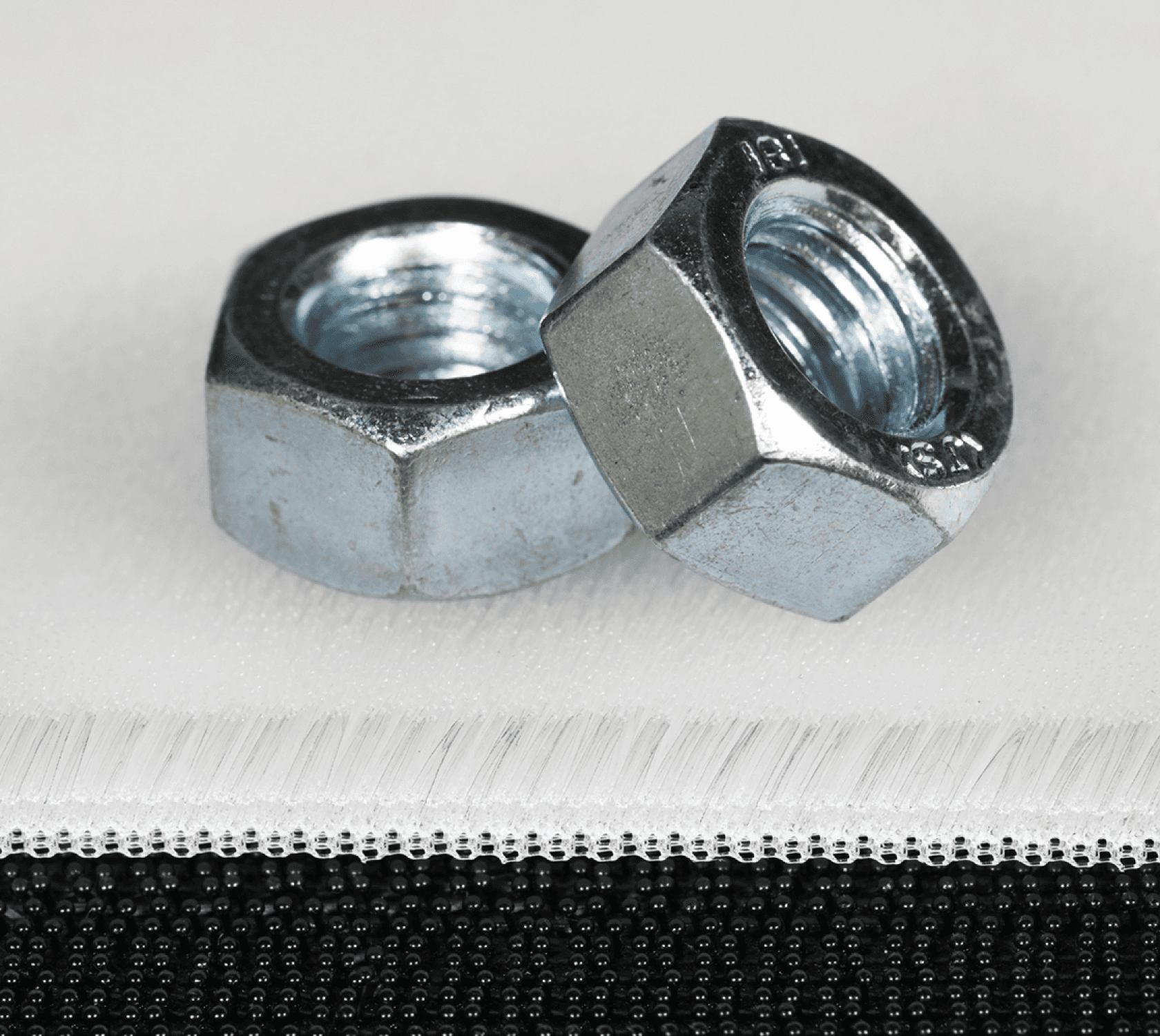

PolyBrush uses angled polymer bristles to safely move a variety of delicate parts with minimal chance of damage and ensure that parts never reverse direction. Density has been optimized to provide support for fragile pieces by holding them away from the conveyor.

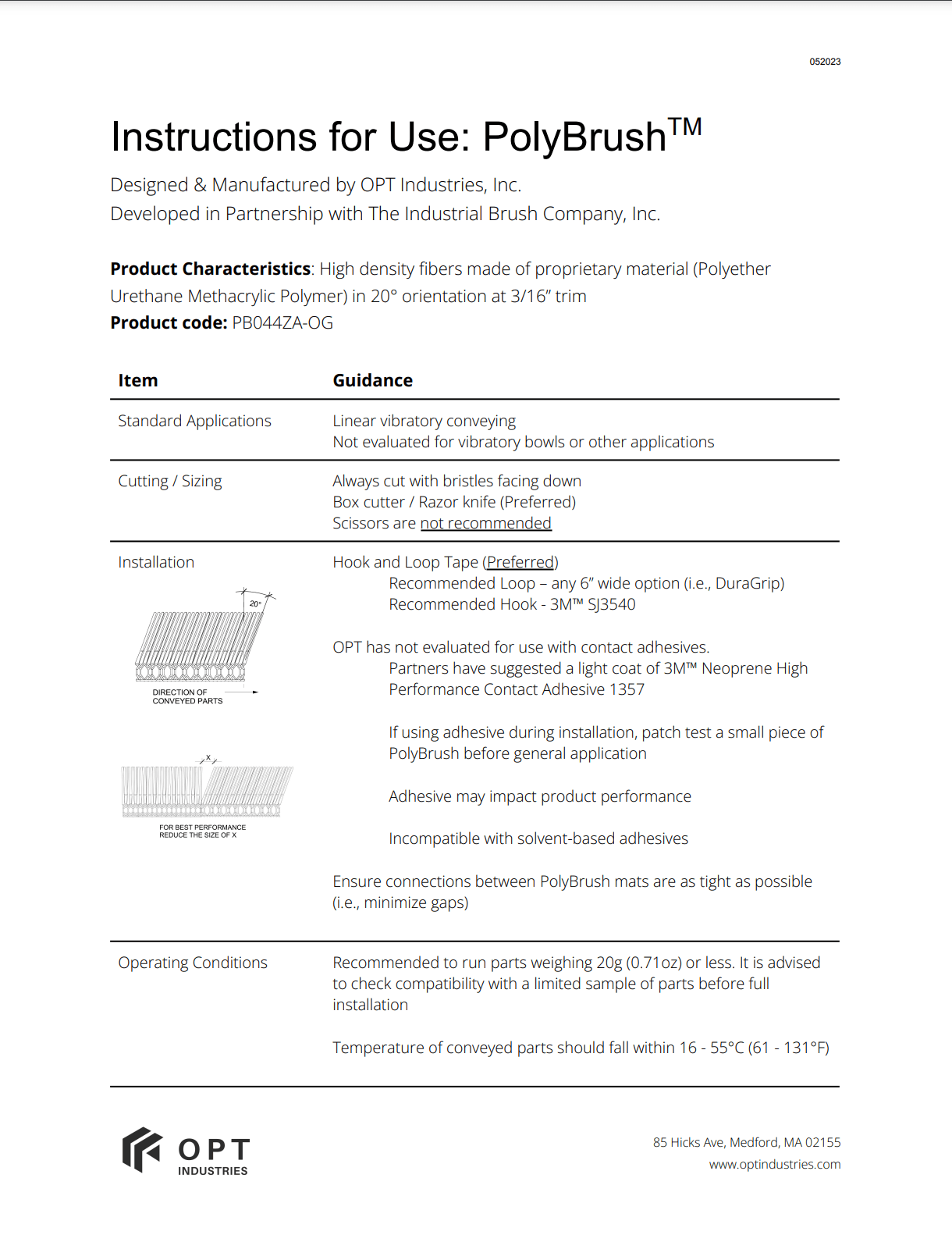

How to install PolyBrush
![[object Object]](/_next/image?url=https%3A%2F%2Fassets.optindustries.com%2Fpages%2FPolybrush%2Finformational%2FPolyBrush_Cut.png&w=3840&q=75)
![[object Object]](/_next/image?url=https%3A%2F%2Fassets.optindustries.com%2Fpages%2FPolybrush%2Finformational%2FPolyBrush_Secure.png&w=3840&q=75)
Secure

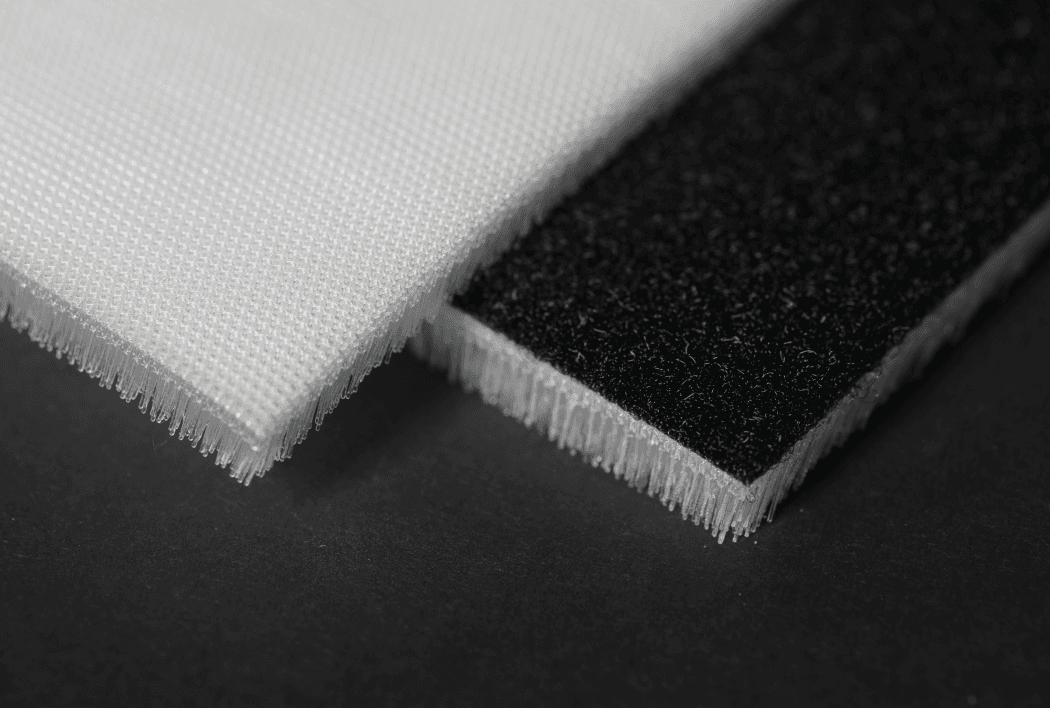

PolyBrush panels can be easily secured using hook and loop tape for optimal performance.
![[object Object]](/_next/image?url=https%3A%2F%2Fassets.optindustries.com%2Fpages%2FPolybrush%2Finformational%2FPolyBrush_Replace.png&w=3840&q=75)

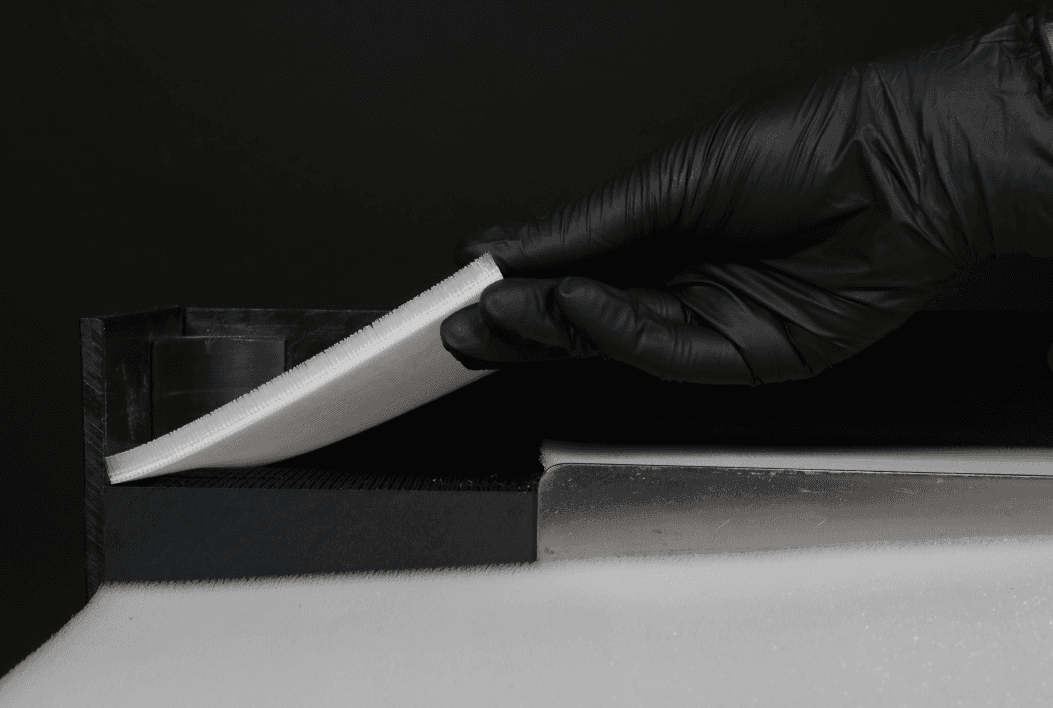

Replace
Spot replace as needed without installing an entirely new panel.
Product specifications
PolyBrush Panel Size
6” W x 24” L x 3/16” trim
(trim length is equivalent to Brushlon 300 series height)
Weight Recommendation
Recommended to run parts weighing 20g (0.71 oz) or less.
Important Notes
Avoid prolonged contact with organic solvents and oil-based liquids. We recommend only using water-based coolants.
Temperature Guidance
PolyBrush should be kept at 16 - 55°C (61 - 131°F).
Made in the USA with sustainability in mind
All OPT Industries products are made in the USA in our facility in Massachusetts. Our vertically integrated manufacturing process keeps our supply chain short, so you get products faster and more reliably.
Our patented additive manufacturing technology enables us to make each sheet of PolyBrush as a single part, so there’s never any separation between layers or assembly issues. Our polymer formulation comprises over 30% bio-based materials, which are derived primarily from conifer trees.
